BTM0604C2P
Bluetooth Module with on-board antenna
Class 2, BC04 CSR Chipset
Features
* Operating Frequency Band 2.40 GHz~2.48GHz unlicensed ISM Band
* Bluetooth Spec. v2.1 Compliant + EDR
* Enhanced Data Rate (EDR) compliant with v2.0.E.2 of specification for both 2Mbps and 3Mbps modulation modes
* Class 2 type Output Power
* Support software Upgrade
* Support Piconet, up to 7 Slaves
* Scatter net Support
* USB 2.0 and UART Host Interface
* PCM Audio Interface
* Voltage range 2.7V to 3.6V
* Normal Supply Voltage at 3.3V
* Built-in 8Mbit Flash Memory
* Support modes: Park, Sniff, Hold and Deep Sleep mode
* Surface-mount, Size: 27.0 x 14.5 x 1.8 mm
|
|
Product Description
The BC04 Bluetooth Module is a Class 2 Bluetooth module using BlueCore4-External chipset from leading Bluetooth chipset supplier, Cambridge Silicon Radio(CSR chip). It provides a fully compliant Bluetooth system for data and voice communications. Interfaces with a host via USB or UART and support full data rate up to 3Mbps modulation modes. Voice interface supported PCM protocol. The module and device firmware is fully compliant with the Bluetooth specification v2.0.
Applications
* PCs, PDAs
* Computer Accessories (CF Cards, USB Dongles
* PCMCIA, RS232 Adaptors, etc.)
* Mice, Keyboard, Joysticks
* Cordless Phone
* FAX, Printer Adaptors
* Digital Camera
* Access Points to LAN and/or Dial-up network

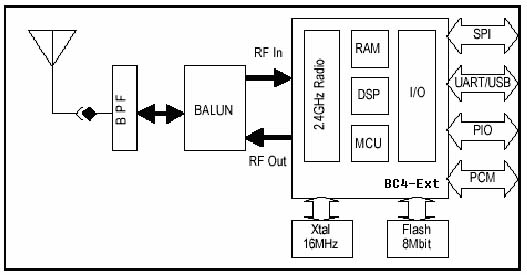

Block Diagram
Documentation：
 BC04 Bluetooth Module_antenna datasheet.pdf
Bluetooth module manual.pdf
Bluetooth module AT Command Manual.pdf
SetParam2.0_en.zip(application)
