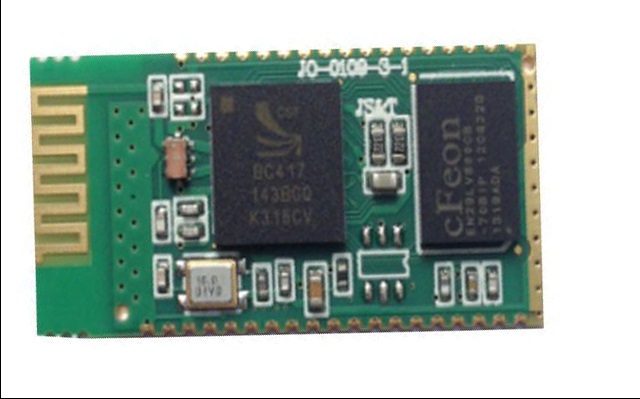

BTM0604C2P

Bluetooth Module with on-board antenna

Class 2, BC04 CSR Chipset

SIZE: 31.6*14.3*2 MM

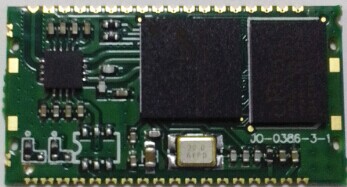

                                                BTM0504C2X                                                                              BTM4504C1H

                       Bluetooth Module without on-board antenna                                                     Class 1

                                Class 2, BC04 CSR Chipset                                                                 BC04 CSR Chipset

                                    SIZE: 27.0*14.5*1.8 MM                                                                  SIZE: 27.5 x 14.5 x 2 MM

Description:

Bluetooth Module can be applied to kinds of electronic information products such as family-used equipment and apparatus (medical equipment).As a cable substitute project, it can connect directly with SCM or processor, it adopts plug and play to realize the wireless data transmission between devices. It has two devices used together, a master device and a slave device, which can be used independently or not. It provides safe authentication function, when users set and use it, the connected device must be encrypted, user with encryption can communicate with it, if it is a pair of Bluetooth RS232 module, the process will be completed automatically.

Features and Benifits:

* Bluetooth V2.1+EDR
* On-board antenna or External antenna
* Working temperature:-25~85
* Standard UART interface
* Support multi baud rate(such asl.2k, 2.4, 4.8, 9.6k, 19.2k, 38.4k, 57.6k, 115.2k etc.),
The maximum is 1.384Mbps( the original baud rate is 9.6K)
* Energy saving automatically mode.
* Support low power working mode/high speed working mode
* Safe authentication, data encryption.

Application:

PC, Medical Equipment, Mapping Equipment, Printers,PDA
Personal digital assistants
Wireless Keyboard, Mouse

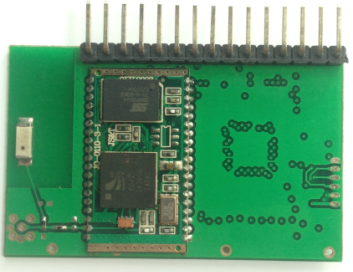

Evaluation kit for Bluetooth module(BC04 module):

BTT207
