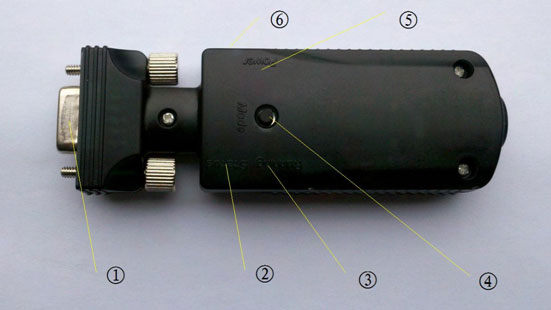

ZBS3904C2P

*  This product do not have the function of waterproof. Therefore please do not directly install the product in outdoor or damp places.

*  This product is wireless electronic products. Please do not directly install it in the metel shielded case and try to install in the open place or place without obstache mutually.

*  Installing the this product in outdoor, if it is open around, please install lightning conductor to avoid lightning stroke.

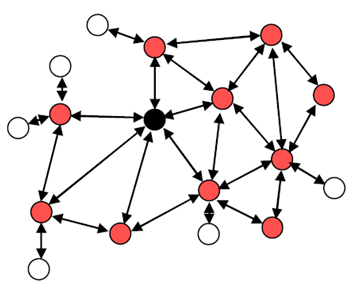

The Zigbee serial adapter of Jinou company integrate the RF transceiver and microprocessor which meet the standard of ZIGBEE PRO. It has the following advantages and features: long communication distance, strong capacity of resisting disturbance and flexible network group. It can also realize the data transparent transmission between point ot point, point to multipoint and multipoint to multipoint devices. It forms three network structures: the star, the tree and the mesh.

The data interface of the product is standard serial RS232 data interface. It can realize the data sending by broadcast way, data sending between center coordinater and other devices by the way of umbrella and data sending by the mode according to target address.

After entering into network, through command, any adapter can inquire and map out the whole network topology, including the quanity of node in network, the manual relationship among nodes and the signal strength among nodes.

There are three kinds of logical device types in Zigbee network: telegon (centre node), router and terminal node. One zigbee network can include a telegon, several router nodes and several terminal nodes. This product can be set as different device types through parameter configuration.

Technical Specifications
