BTM0704C2P

Feature * compatible with V 1.2 or 2.1+EDR criterion * class 2 standard * on-board antenna * effective distance 10M * standard UART interface * support multi-band rate * energy saving automatically * support low consume function mode * reference designs available at no additional cost * high-speed function model * security authentication, add code for data

Class 2 with on-board antenna and PIN BC04 CSR Chipset SIZE: 31.1*17.7*1.82 MM

Realized agreement
* Realize Bluetooth serial profile.
* LM, LC, L2cap, SDP and RFCOMM

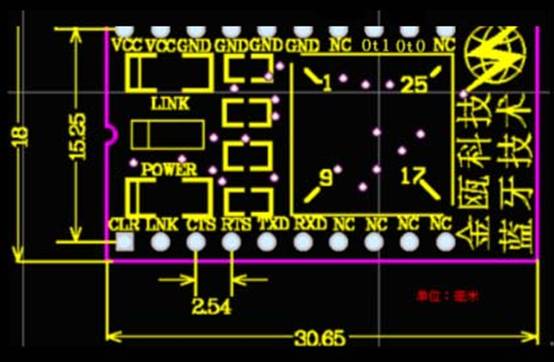

Pin specification:
1. clearup saved Bluetooth address(input)
2. connect instruction output high level under connection(output)
3. clearup transmission(input)
4. request transmission(output)
5. serial data input
6. sleep/awaken(input),connect high level when it is free
7. do not connect
8. the source of power supply
9. the pressure of electrical source(input)

　Documentation：
　　　Bluetooth embedded module manual.pdf
　　　Bluetooth module manual.pdf
　　　Bluetooth module AT Command Manual.pdf
　　　SetParam2.0_en.zip(application)
