JINOU BLE Beacon
JO-BEC01 JO-BEC03

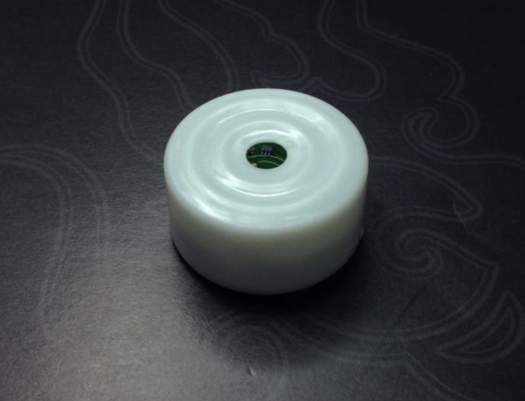

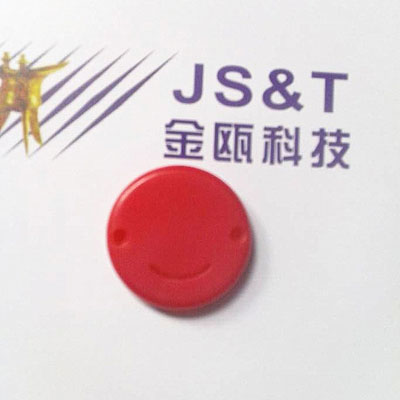

JO-BEC04 JO-BEC05 Jinou Beacon uses Bluetooth 4.0 BLE technology; it can help you locate indoor. The searching range is up to 50M. It’s small size like a coin, that can be easily placed indoors. Users can detect its UUID signal RSSI signal,and battery life signal with smart phones. Users can change its paring code, transmitted power, and other customized functions. It has a virtue of quick respond and less Latency. We have made one special type for Apple standard and we can provide test app for Android (version 4.3 and up). Additional functions: power switch, power level indicator Led, Buzz alarm etc.

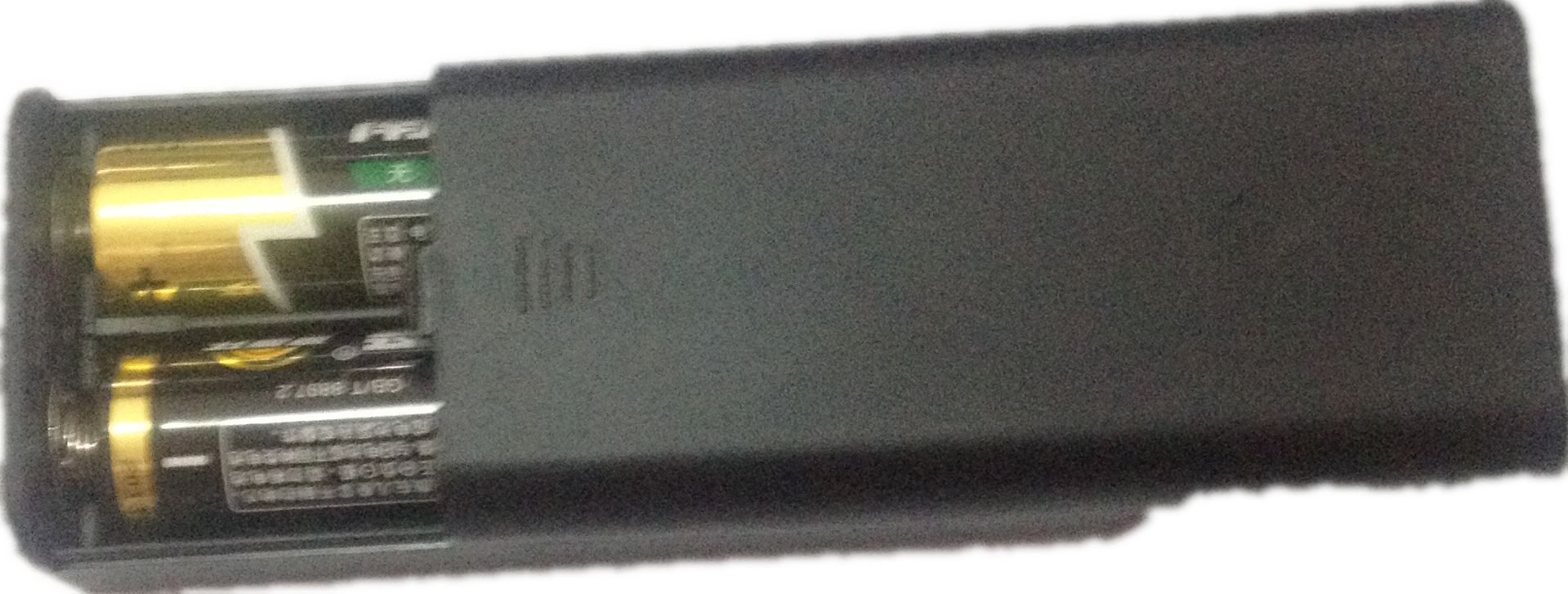

Features: * Built-in firmware, compatible with iBeacon* JO-BEC01 and JO-BEC02 are powered by CR2032 button cell; JO-BEC03 is powered by two AA batteries; JO-BEC04 is powered by CR2450 or CR2477. * Bluetooth Low Energy * Excellent link budget (up to 93dB) * Available for long distance transmission * Precise figures indicate received signals strength * CE/FCC standard * High performance, low power consumption * Temperature sensor * AES Security Processor * JO-BEC01:DIA30.00*17.20mm? * JO-BEC03:75.90*34.00*18.00mm(PCB Board only26.92*12.5mm?) * JO-BEC04:DIA34.75mm?(PCB Board) * JO-BEC05:DIA29.50*10.00mm
Applications: * advertising and positioning* jBeacon firmware, compatible with iBeacon, supports CC2540 with CC2541 BLE module 4.0 * Built-in pairing password preventing others to modify Settings * UUID, Major and Minor values can be amended by the users * Broadcast cycle can be modified by the users * The battery intelligent detection and notification * Names shown on the IOS device can be modified by the user * JBeacon compatible with iBeacon when connected with other IOS devices, it will continue broadcasting * Free jBeacon firmware upgrade services * Fashionable customized cover and firmware services
JBeacon Manager Gateway As jBeacon applications widely spread, it’s important to have the devices managed and controlled. You are the manager in the office sitting in front of the computer, how do you know if some jBeacon works well or not? What’s the matter? Which one is running out of power? And how should you do to shut them down for some period or at night? Now, an jBeacon manager gateway will easily get all these work done.
Features: 1.Power saving—the manager can automatically control the status of jBeacons, i.e. Make them sleep when no connection at night so as to save energy.2.Alarm for low battery—the manager would detect the power level of jBeacons, and send notice when in low power. 3.Remote upgrade—the manager would upgrade the software of its jBeacons when it is needed.
|
