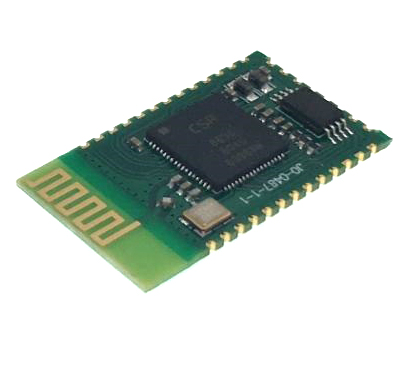

Bluetooth Stereo Audio Module CSR8635
Size:25mm*14.5mm
Description:
The JO—BC8635 Bluetooth audio module provides a
fully integrated solution for delivering
high-quality stereo audio in a small form factor.
It combines a Class 2 Bluetooth radio with an
embedded DSP processor, controlled and configured by
simple ASCII commands and GPIO. It integrates RF, a
baseband controller, and DSP, making it a complete
Bluetooth audio wireless link. The JO—BC8635 supports
A2DP,AVRCP,HFP,HSP, It provides a UART interface, GPIO,
stereo speaker outputs, stereo microphone inputs, and a USB port
Specification:
| Model |
CSR 8635 |
| Working frequency |
2.4GHz |
| Bluetooth standard |
V4.0 compatible with3.0,2.1+EDR,2.1,2.0,1.1 |
| Baud Rate: |
3.3V |
| Protocol |
SSP,HSP1.2,HFP1.6,A2DP1.2,AVRCP1.4,DI1.3 |
| Audio format |
Stereo, AAC/MP3/SBC/APTX,
Faststream decoder.
|
| Link |
Maximum 2 Bluetooth at the same time |
| Working electricity |
<15mA/15mA/20mA/20mA |
| Standby electricity |
<1mA |
| Charging voltage |
5V+/-5% |
| Charging electricity |
<150mA |
| Working temperature |
-40℃ to +80℃ |
| Effective range |
10M |
Applications：
1)This type of module is mainly used
in shortdistance music transmission.
It can be easily connected to laptop,
mobile phone, PDA and other digital
Bluetooth products for wireless music transmission.
2)Bluetooth speakers
3)Bluetooth stereo headset
4)Hands-free phones
5)On-board Bluetooth
6)Bluetooth wireless transmission of audio
