Industrial Bluetooth gateway




    Type:BTP106-S
    Size:30cm * 10cm * 5cm
    Or 11.81in * 3.94in * 1.97in


  • Bluetooth V5.0 standard
  • Frequency range: 2.402G ~ 2.480GHz
  • Class2 Bluetooth module
  • Bluetooth protocols: LC、LM、L2CAP、ATT、GATT
  • Support WiFi security authentication
  • Maximum scan range: 100m-300m in open air
  • Internet protocols: TCP/IP, DHCP
  • Internet: RJ45 port 10M/100M adaptive




Product Details


Introduction


    This Bluetooth gateway can scan the beacon, collect the beacon's broadcasting information such as UUID, name and RSSI, and then send the data packet to the local or cloud server via RJ45 cable or WiFi.


Feature


  • Automatic scanning
    After powered the gateway and built TCP connection with server, the gateway will automatically scan surrounding BLE device. And upload MAC address device name, broadcasting type, broadcasting content and in time signal power to server.
  • Support various devices
    It can monitor the device conforms to the BLE standard.
  • Low operating cost
    Bluetooth applied to the worldwide open 2.4G band, so its operating cost is almost to zero.

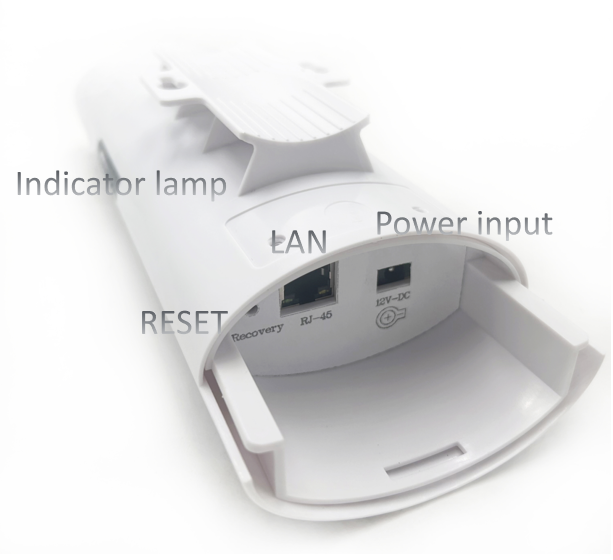

Hardware overview






  • The red light is the system indicator light
  • The green light is the network connection indicator light
  • The blue light is the Bluetooth working status indicator light
  • 12V 1A power


Application








Database


Bluetooth version BLE 5.0
Working Frequency 2.402G ~ 2.483GHz
Antenna Embedded antenna
Max Scanning Range 100 m in open air
Bluetooth Chipset nRF52832
Max Scanning Number 5pcs BLE devices
Bluetooth Protocol LC, LM, L2CAP, ATT, GATT
Average power consumption 130mA, peak power consumption is 500mA(Using WiFi)
Authentication Support WiFi security authentication
Working Temperature -20℃ ~ +65℃
Power Supply 12V 1A USB charging
Wireless IEEE 802.11b/g/n
Network RJ45/WiFi
Network protocol TCP/IP, DHCP
Size 30cm * 10cm * 5cm
