10M(32.8ft) Bluetooth 4.0 Dual-mode Access Point AP


JINOU Bluetooth dual mode router is a kind of product which integrates both classic Bluetooth and BLE. Built-in core processor supports the router to connect 7 devices and transmit data at the same time. When Bluetooth router searches BLE devices, it will send around device’s MAC address, device name, broadcasting type, broadcasting contents and also real time signal strength. Same device’s information can be returned once according to customers’ command during scanning process, it can also be returned according to the real time scanning conditions. There is no limitation of the number of scanning devices. As to classic Bluetooth devices, this router supports connect and communicate with various devices which achieve SPP and HID. Thus, JINOU Bluetooth dual mode router can better satisfy different IOT application with different requirements.

BTP104: 10M Bluetooth 4.0 Dual-mode Access Point AP
  • Compatible with Bluetooth 3.0 and BLE4.0
  • Linux system
  • 10M
  • Scans unlimited broadcasting
  • Connects 7 Bluetooth devices at most
  • The Bluetooth AP often uses in home or medical field to collect data of less than 7 users, or records data of competitor in exercise and fitness.

Working Frequency ISM 2.400~2.483GHz
System Linux
Bluetooth Specification BLE 3.0/4.0/4.1/4.2
Achieved Bluetooth protocols LC, LM, L2CAP, GATT, SDP, RFCOMM
Achieved internet protocols TCP/IP, HTTP, FTP, ARP, DHCP, PPP, etc.
Authentication Support Bluetooth safety certification
Antenna External antenna
Support Support point to multi-point wireless connection
Network 10M adaptive network
Automatically distributes IP address Automatically distributes IP address
Average power consumption 120mA@12V
Internet RJ45
Authentication support Bluetooth safety certification
Max connect 7 devices at the same time

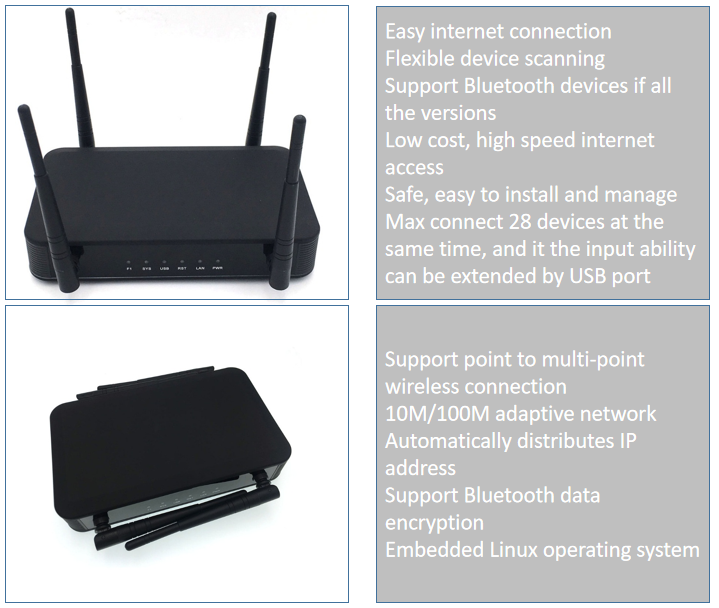

  • Easy internet connection
  • Flexible device scanning
  • Support Bluetooth devices if all the versions
  • Low cost, high speed internet access
  • Safe, easy to install and manage
  • Automatically distributes IP address
  • Support Bluetooth data encryption
  • Linux operating system
  • 400MIPS High-performance processor

  • Device data collection
  • Staff monitor in school, workshop, etc.
  • Smart home, building automation
  • Logistics, Medical, Exercise and fitness
  • IOT
