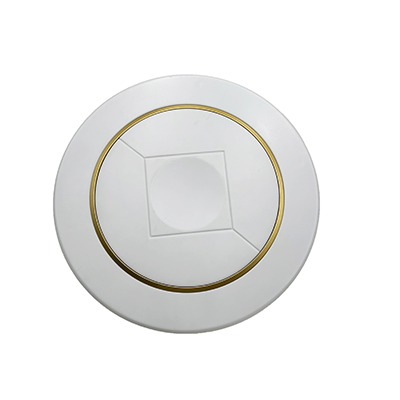

BLE5.0 Long Range Scan Gateway


    Size:16cm * 16cm * 5cm
    Or 6.3in * 6.3 * 1.97in

  • Bluetooth V5.0 standard
  • Frequency range: 2.402G ~ 2.480GHz
  • Class1 Bluetooth module
  • Bluetooth protocols:LC、LM、L2CAP、ATT、GATT
  • Internet protocols: TCP/IP, DHCP
  • Authentication: Support WiFi security authentication
  • Maximum scan range: 150M in open air


Product Details


    With years of development, the IOT (Internet of Things) technology is widely used. IOT is the general term of a system consisting of objects (sensors, chips, and gateways), Internet connection, cloud/data center.
    Among these, the part of objects can be very fragmental. Gateway can integrate information collected from different objects.
    Internet can transmit information among each part and cloud/data center can analyze and provide solutions.
    Combining these 4 parts, it will become a big platform that can achieve deployment, analysis and application. This is the core structure of IOT.


  • Automatic scanning
    After powered the gateway and built TCP connection with server, the gateway will automatically scan surrounding BLE device.
    And upload MAC address device name, broadcasting type, broadcasting content and in time signal power to server.
  • Support various devices
    It can monitor the device conforms to the BLE standard.
  • Low operating cost
    Bluetooth applied to the worldwide open 2.4G band, so its operating cost is almost to zero.

Hardware overview


  • 5V 1A power adapter
  • LAN:Insert the network cable into the Bluetooth gateway LAN port to connect the Bluetooth gateway to a local area network
  • Reset:Restore to factory default values
  • There are three colors of indicator lights on the gateway
  • The red light is the system indicator light
  • The green light is the network connection indicator light
  • The blue light is the Bluetooth working status indicator light




Bluetooth standard Bluetooth V5.0 standard
Bluetooth specification Class1 Bluetooth module
Frequency range 2.402G ~ 2.480GHz
Bluetooth Protocol LM, LC, L2CAP, GATT, ATT
Internet protocol TCP/IP, DHCP
Authentication Support WiFi security authentication
Internet RJ45 port
Maximum scan range 150M in open air
Average power consumption 130mA@5V, peak value 500mA (using WiFi)
Automatically distributes IP address Automatically distributes IP address
Working temperature -20~65℃
