Small size High performance Low price Data communication module

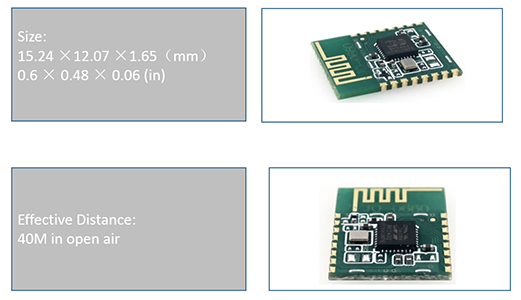

Size: 15.24mm*12.07mm*1.65mm
0.6in*0.48in*0.06 in

Brief Introduction:

    Jinou BLE0605C2P Bluetooth module is a supper small size low energy module.
    It is an intelligent wireless data transmission that independently developed by our company.
    It is suitable for portable healthcare equipment, wearable devices, smart home and other applications.

Function Description:

    BLE0605C2P Bluetooth module can transfer data transmission through the UART port with remote low energy Bluetooth device.
    After the module is powered on, it will enter communication mode or configuration mode, according to the level value of the ModeSW pin.

    In communication mode, the module only works as SLAVE(Peripheral) Bluetooth device, and the remote Bluetooth works as master device can discover and connect to the module and perform the data transmission task.

    In configuration mode, user can configure parameters of the module, such as device name, baud rate, and power management mode.
    In this mode, the module cannot be found and connected and is always awake.

    With automatic dormancy (low power) mode enabled, the module can achieve significantly lower power consumption while ensuring reliable communication.
    However, after the function is enabled, the wake-up pin is active.
    When the external processor sends data to the module, the wake-up and hold pin of the module must be set high level in advance, and the module no longer enters dormancy.
    When the data is sent, reset it back to low level.

    If the application is insensitive to power consumption, the auto-sleep function can be disabled.
    At this time, the module is in full-speed operation and the power consumption is relatively high.
    But when the user sends data to the module, there is no need to control the wake-up pin.

Parameter Index:
Model No. BLE0605C2P
Specification 4.2 BLE
Working Frequency ISM 2.402~2.480GHz
Antenna Printed Antenna
Effective Distance 40M in open air
Communication Port Standard UART
Energy Saving Support low energy mode
Max Transmission rate Note1 2.5Kbytes/Sec
Baud rate 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400bps
Power Consumption RF level Class 2(10M)
Not connected (Broadcast interval 1s, turn on low energy mode) 40uA
Not connected (Broadcast interval 1s, turn off low energy mode) 2.36mA
Connected(Open low energy mode)Note2 0.65mA
Connected(Baud rate 9600, full speed data transmission) 3.4mA

    Note 1: This refers to the data transfer rate between two modules, which is related to the connection parameters.
    If transfer data with phone, the transmit speed will be different.
    If user want to reach maximum transmit speed, plz set baud rate to 38400.

    Note 2: This value varies with the connection parameters, and different master devices may have different values.
    If the module is connected with different mobile phones, the module's power consumption will be different.

  • Bluetooth remote control lock
  • Hospital monitory equipment
  • Smart wearable devices
  • Smart home
  • Bluetooth electronic weight
  • Bluetooth printer
  • Bluetooth mouse, keyboard, joystick and other consumer electronic devices
  • Sports fitness equipment
  • Bluetooth anti-loss device
  • Bluetooth self timer
  • Bluetooth remote control device
  • Bluetooth tag, beacon
  • Bluetooth bracelet, watch
  • Bluetooth blood pressure meter, blood glucose meter
