BLE 4.2 Beacon with Atmospheric Pressure Sensor




    Type: JO-BEC10
    Size: 35.5mm*18mm   or 1.39in*0.7in

  • Bluetooth version: 4.2 BLE, supporting Bluetooth 4.2 low-power mode
  • Automatic energy-saving mode, supporting low power consumption mode
  • Compliance with FCC, CE, ROSH and other certifications
  • Accurate display of signal strength
  • Equipped with air pressure and temperature testing function
  • Sampling frequency can be set



Instruction

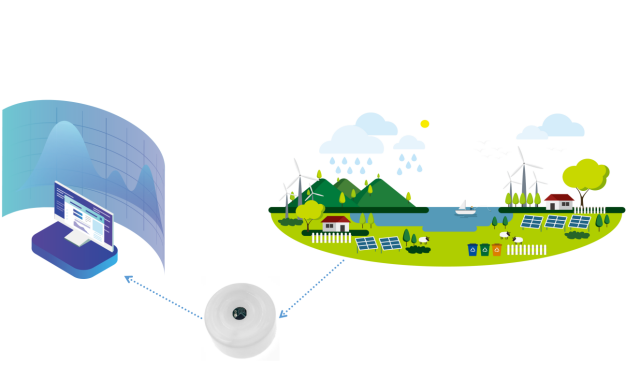

    Atmospheric pressure sensor with small size, reliable performance, high precision, long transmission distance, strong anti-jamming capability, which is widely used in meteorology, marine, environment, airports, ports, laboratory, agricultural and transportation and other fields.


  • Laptop PC: Free fall Detection
  • Cell Phone: Image Stability, Text Scrolling, Motion Dialing, E-Compass
  • Pedometer: Motion Sensing
  • Portable Handheld: Text Scrolling
  • Navigation and Dead Reckoning: E-Compass Tilt Compensation
  • Gaming: Tilt and Motion Sensing, Event Recorder
  • Robotics: Motion Sensing


Database


Working Frequency ISM 2.400~2.483GHz
Bluetooth Specification BLE 4.0/4.1/4.2
Spread Spectrum FHSS
Voltage 2.7V-3.3V
Effective Distance 15m
Receiving sensitivity <-88dBm at < 0.1% BER
Connecting standby power about 0.2mA
Antenna standard 2.4G, 50ohm
Safety standard AES 128bit
Temperature measure range -40℃ ~ +85℃
Atmospheric pressure measure range 300 ~ 1100hPa
Air pressure accuracy 0℃ ~ +60℃ ±1.0hPa, -20 ℃ ~ 0℃ ±1.7hPa
Temperature measurement accuracy ±1℃
